JACK PANELS
MTP48K WIRED AUDIO SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
MTP48K WIRED AUDIO SERIES
The MTP Series were developed with the AES/EBU digital

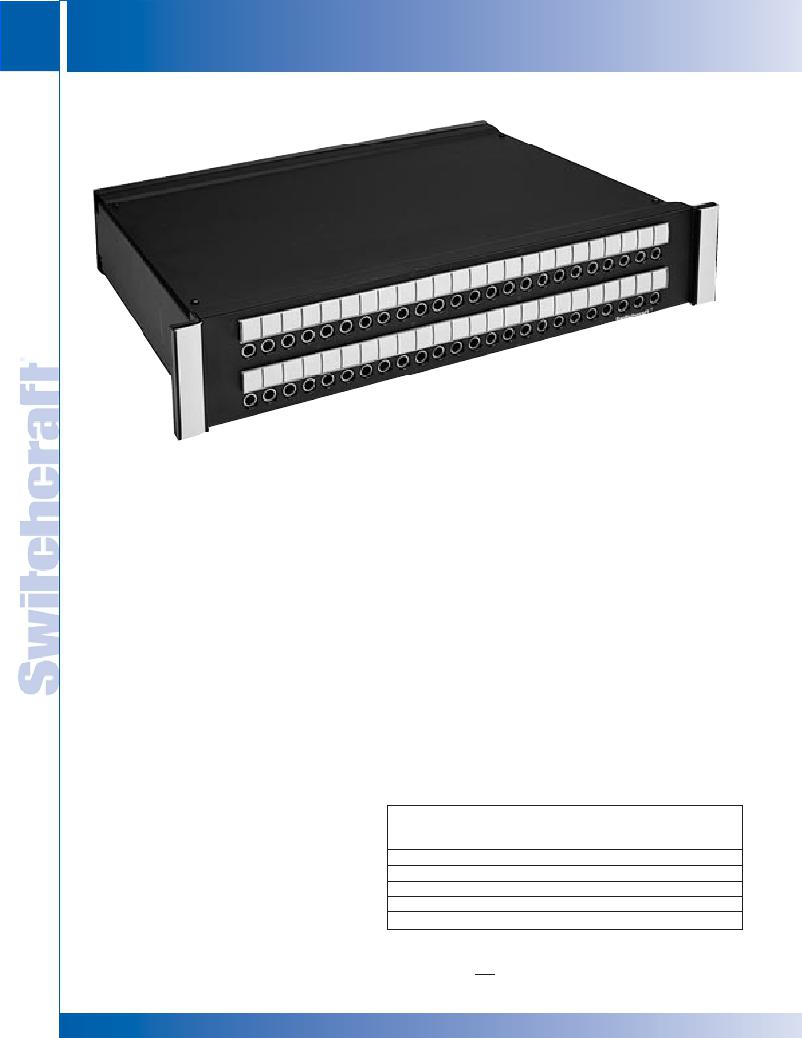

MTP48K3NO
FEATURES AND BENEFITS
? Unit features 48 MT style jacks in either
1RU (1.75"H) or 2RU (3.5"H) spaces
? All versions utilize AES/EBU wiring for
complete digital compatibility
? Attractive, corrosion resistant nickel-plated,
steel frame jacks
? Gold-plated switching contacts reduce
contact resistance, improve reliability
? Rugged, attractive black epoxy-finished
steel chassis
? Extra wide designation strips for easy
channel identification
? 1RU version configurations include normals
strapped and normals brought out
? 2RU version configurations include normals
strapped, normals brought out, and sleeve
normals brought out
SPECIFICATIONS
MATERIALS
JACKS
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel silver
standard in mind. All versions are made with 110 Ohm cabling
inside as a standard. Available in a wide variety of configurations.
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: O°C to +50°C
ELECTRICAL
Contact Resistance : 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500 VAC at 60 Hz
Working Voltage: 140 VDC maximum
Current Rating: 100 milliamps
Ordering Information
with welded contacts
Part
Type of No. of
Assembly Screws: Zinc-plated steel
Welded Contacts: Gold alloy
Number Jack Jacks
MTP48K1NS MT 48
Description
1.75" High, normals strapped
PANEL
MTP48K3NS
MT 48
3.5" High, normals strapped
Front Channel: Black anodized aluminum
Frame: C.R.S. black epoxy painted
Designation Strips: Black polycarbonate 94V-0
Designation Strip Covers: Clear polycarbonate
Jack Inserts: Thermoplastic polyester
MTP48K1NO MT 48
MTP48K3NO MT 48
MTP48K3SNO MT 48
1.75" High, normals brought out
3.5" High, normals brought out
3.5" High, sleeve normals out
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
